Automating robot mechanics with ctrlX AUTOMATION

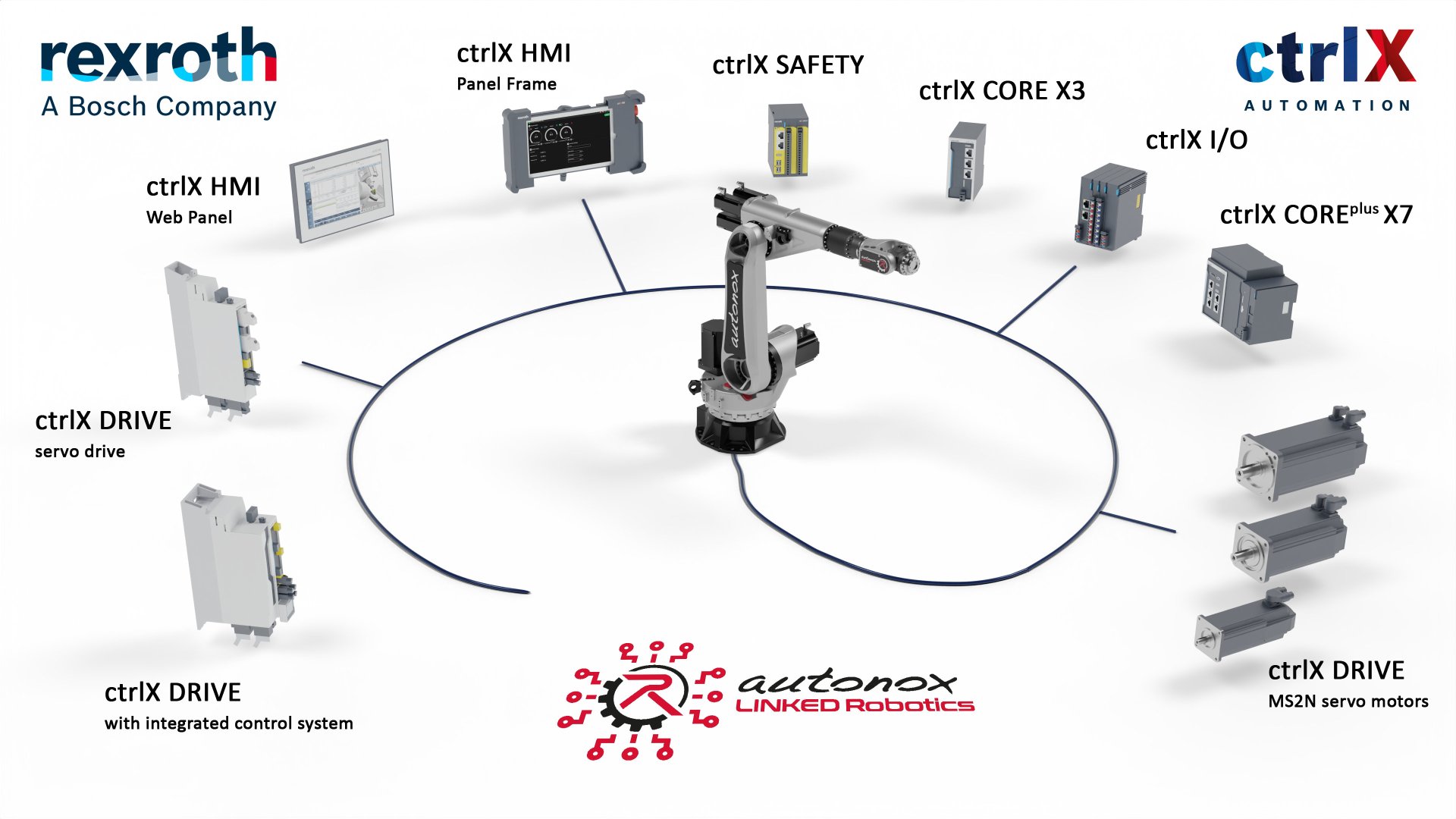

The combination of autonox mechanics with ctrlX OS devices enables seamless integration of robotic mechanics, drive technology, and machine control.
It provides one control over the entire machine process without the need for additional integration of external robot controls. Standardization of mechanics and drives allows for uniform part strategies.
Advantages
- Control independent mechanics
- Selection of over 360 mechanics possible
Target Groups
- Machine Builder
- System Integrator
ctrlX MOTION

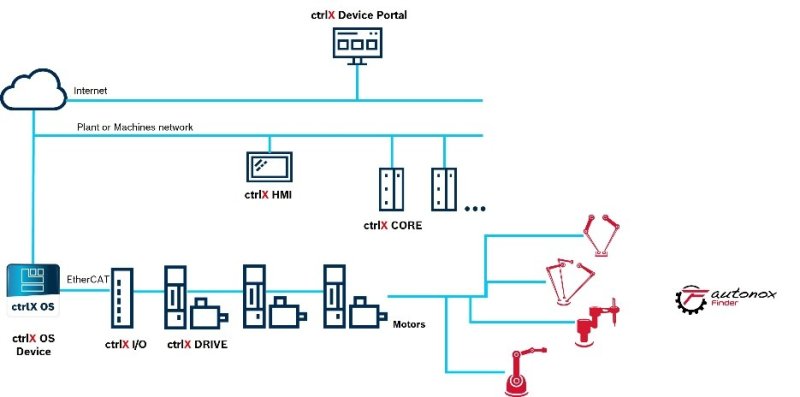

The direct integration of the robot arm into ctrlX MOTION for Motion, Robotic and CNC applications enables easy engineering of the complete system.
Extensive Robotic Functionalities
The system provides a wide range of advanced robotic functionalities to handle demanding handling and positioning tasks. It supports various kinematics, including Delta, Scara, and Articulated Arm robots, ensuring precise control of the tool orientation in 2D and 3D.
To increase efficiency, the integrated blending functionality allows for a smooth transition between individual motion segments without intermediate stops. This leads to a reduction in cycle times and more harmonious motion sequences.
Furthermore, the belt synchronous movement function enables the precise picking and placing of objects on moving conveyor belts ("Pick & Place on the fly").

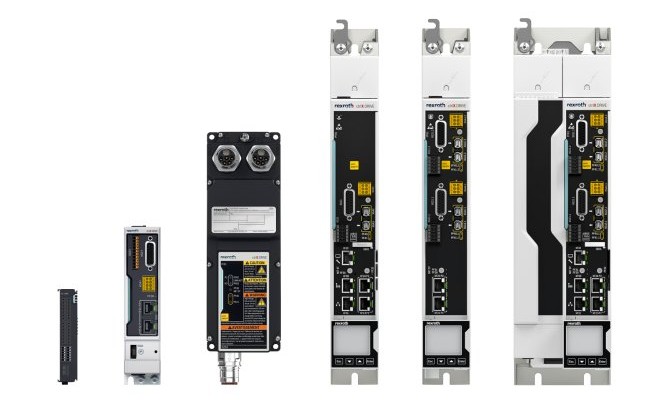

Putting the drive in automation: compact and modular servo drives
Individual, space-saving and flexibly expandable solutions are more important than ever in mechanical engineering – as is a fast time to market. As the world's most compact drive system, ctrlX DRIVE is an important enabler. The servo drive requires very little installation space, enabling companies to quickly implement economical solutions that are precisely tailored to their specific needs. The drive systems grow alongside the requirements: from cost-effective entry level versions to high-end applications. The open system architecture offers maximum freedom and allows scaling without architectural breaks.

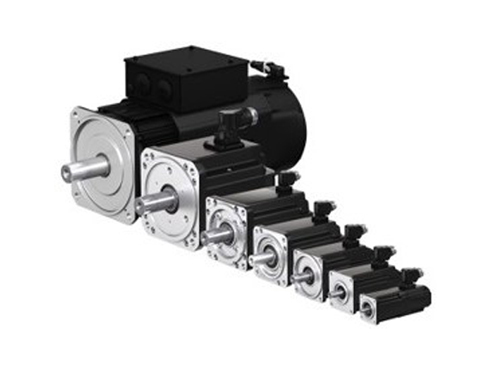

ctrlX DRIVE – MS2N servo motors
The MS2N servo motors are designed for high performance: They are characterized by more power per area as well as highest energy efficiency – and this with compact dimensions. Thus, the servo motors in all motor sizes have high torques and an improved S1 torque at higher speeds. The continuous power can be further increased by optional forced ventilation or water cooling. The servo motors also have up to five times the overload capacity, which goes hand in hand with very low torque ripple.
